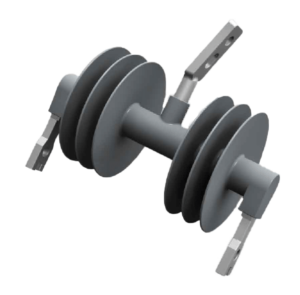

11 kV Dropout Fuse Insulator
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Voltage Rating | 11KV / 15KV |
| Insulator Type | Composite Polymer Solid core DO Fuse Insulator / Cut out Fuse Insulator |
| Nominal System Voltage | 11 kV |
| Highest System Voltage | 15 kV |
| System Frequency | 50 Hz |
| Rated Current | 100/200 Amps |
| Creepage Distance | 300mm |
| Power Frequency Withstand Voltage - Dry | 45 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 35 kV (rms) |
| Impulse Voltage | 55 kVp. |
| Standard | IEC 61109 / IEC 60282 |

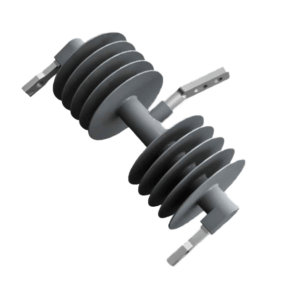

22 kV Dropout Fuse Insulator
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Voltage Rating | 22kV |
| Insulator Type | Composite Polymer / Cut out Fuse Insulator |
| Nominal System Voltage | 22 kV |
| Highest System Voltage | 26 kV |
| System Frequency | 50 Hz |
| Rated Current | 100/200 Amp |
| Creepage Distance | 600 mm |
| Power Frequency Withstand Voltage - Dry | 45 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 45 kV (rms) |
| Impulse Voltage | 75 kVp. |
| Standard | IEC 61109 / IEC 60282 |
33 kV Dropout Fuse Insulator
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Voltage Rating | 33KV / 36KV |
| Insulator Type | Solid core DO Fuse Insulator / Cut out Fuse Insulator |
| Nominal System Voltage | 33 kV |
| Highest System Voltage | 36 kV |
| System Frequency | 50 Hz |
| Rated Current | 100/200 Amp |
| Creepage Distance | 900mm / 1050mm |
| Power Frequency Withstand Voltage - Dry | 90 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 70 kV (rms) |
| Impulse Voltage | 170 kVp. |
| Standard | IEC 61109 / IEC 60282 |
