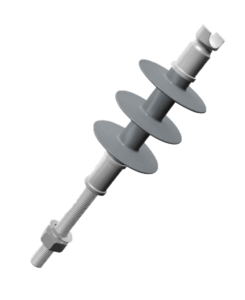

11kV Composite Polymer Pin Insulator
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Voltage Rating | 11KV / 15KV |
| Type of Insulator | Composite Polymer Pin Insulator |
| FRP Rod Diameters | Ø24mm/ Ø33.5mm |
| Minimum Failing Load | 05KN/ 10KN/ 12.5KN |
| Nominal System Voltage | 11 kV |
| Highest System Voltage | 15 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 320mm / 450 mm |
| Power Frequency Withstand Voltage - Dry | 60 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 45 kV (rms) |
| Impulse Voltage | 75 kVp. |
| Standard | IEC 61109 / IEC 62217 |

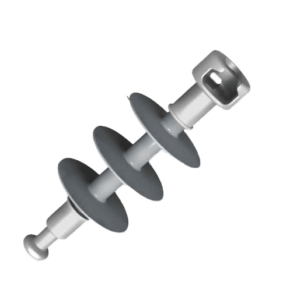

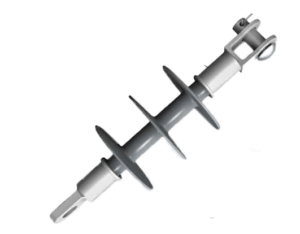

11kV Composite Polymer Disc Insulator
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Voltage Rating | 11KV / 15KV |
| Type of Insulator | Composite Polymer Disc (Suspension/Tension) Insulator |
| Type of End Fittings | Ball & Socket (B&S) / Tongue & Clevis (T&C) |
| FRP Rod Diameters | Ø16mm/ Ø18mm/ Ø20mm |
| Minimum Failing Load | 45KN/ 70KN/ 90KN |
| Nominal System Voltage | 11 kV |
| Highest System Voltage | 15 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 320mm / 450 mm |
| Power Frequency Withstand Voltage - Dry | 60 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 45 kV (rms) |
| Impulse Voltage | 75 kVp. |
| Standard | IEC 61109 / IEC 62217 |

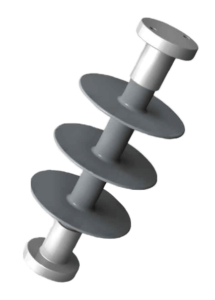

11kV Composite Polymer Solid Core Insulator
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Voltage Rating | 11KV / 12KV |
| Insulator Type | Composite Polymer Solid core Insulator |
| FRP Rod Diameters | Ø16mm |
| Nominal System Voltage | 11 kV |
| Highest System Voltage | 12 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 320 mm / 600mm |
| Power Frequency Withstand Voltage - Dry | 60 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 45 kV (rms) |
| Impulse Voltage | 75 kVp. |
| Standard | IEC 61109 / IEC 62217 |

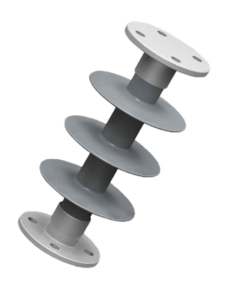

11kV Composite Polymer Post Insulator
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Voltage Rating | 11KV / 12KV |
| Insulator Type | Composite Polymer Post Insulator |
| FRP Rod Diameters | Ø24 mm / Ø33.5mm |
| Minimum Failing Load | 05KN to 10KN |
| Nominal System Voltage | 11 kV |
| Highest System Voltage | 12 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 320 mm / 450 mm |
| Power Frequency Withstand Voltage - Dry | 60 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 45 kV (rms) |
| Impulse Voltage | 75 kVp. |
| Pitch Circle Diameter (PCD) | 57/76 mm |
| Height | 254 mm / as per customer requirement |
| Standard | IEC 61109 / IEC 62217 / IEC 62231 |
