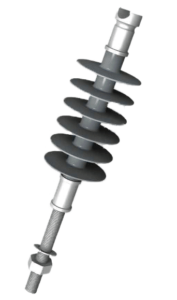

22kV Composite Polymer Pin Insulator
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Voltage Rating | 22KV / 24KV |
| Insulator Type | Composite Polymer Pin Insulator |
| FRP Rod Diameters | Ø24mm / Ø33.5mm |
| Minimum Failing Load | 05KN/ 10KN/ 12.5KN |
| Nominal System Voltage | 22 kV |
| Highest System Voltage | 24 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 600 mm / 700mm |
| Power Frequency Withstand Voltage - Dry | 90 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 70 kV (rms) |
| Impulse Voltage | 150 kVp. |
| Standard | IEC 61109 / IEC 62217 |

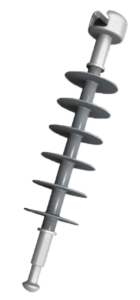

22kV Composite Polymer Disc Insulator
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Voltage Rating | 22KV / 24KV |
| Type of Insulator | Composite Polymer Disc (Suspension/Tension) Insulator |
| Type of End Fittings | Ball & Socket (B&S) / Tongue & Clevis (T&C) |
| FRP Rod Diameters | Ø16mm/ Ø18mm/ Ø20mm |
| Minimum Failing Load | 45KN/ 70KN/ 90KN |
| Nominal System Voltage | 22 kV |
| Highest System Voltage | 24 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 600 mm / 700mm |
| Power Frequency Withstand Voltage - Dry | 90 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 70 kV (rms) |
| Impulse Voltage | 150 kVp. |
| Standard | IEC 61109 / IEC 62217 |

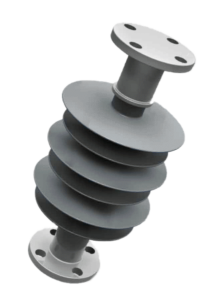

22kV Composite Polymer Post Insulator
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Voltage Rating | 22KV / 24KV |
| Insulator Type | Composite Polymer Post Insulator |
| FRP Rod Diameters | Ø24 mm / Ø33.5mm |
| Minimum Failing Load | 05KN to 10KN |
| Nominal System Voltage | 22 kV |
| Highest System Voltage | 24 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 400 mm / 600mm |
| Power Frequency Withstand Voltage - Dry | 90 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 70 kV (rms) |
| Impulse Voltage | 150 kVp. |
| Pitch Circle Diameter (PCD) | 57/76 mm |
| Height | 254 mm to 450 mm |
| Standard | IEC 61109 / IEC 62217 / IEC 62231 |
